Model Features

  • Compact light-weight design
  • Environmentally friendly oil-free technology
  • Operates quietly at a maximum 70 dB(A)
  • Maintenance free design
  • Cooler running outboard bearings increase service life
  • Built-in particulate filters and silencers
  • Handles vacuum and/or pressure applications
  • Ideal alternative to standard oil sealed rotary vane pumps

Notes

  • Standard voltage for three phase pumps is 208-230/460V 3ph 60Hz.
  • Standard voltage for single phase pumps is 115/230/1ph 50/60Hz, or 115V/1ph 60Hz, or 230V/1ph 60Hz
  • All pumps available in 50Hz frequency and with other voltages.
Vacuum Specifications
Model Number
Motor
RPM
HP
CFM
Max. Hg (Inches)
Weight (lbs.)
Noise Level [dB(A)]
KRF8-G w/o motor N/A N/A 5 22″ 20 61
KRF8-G1 208-230/460V 1800 0.25 5 22″ 31 61
KRF8-G4 115/230V 1800 0.25 5 22″ 31 61
Pressure Specifications
Model Number
Motor
RPM
HP
CFM
Max. PSI
Weight (lbs.)
Noise Level [dB(A)]
KRF8-G w/o motor N/A N/A 5 10 20 67
KRF8-G1 208-230/460V 1800 0.25 5 10 31 67
KRF8-G4 115/230V 1800 0.25 5 10 31 67

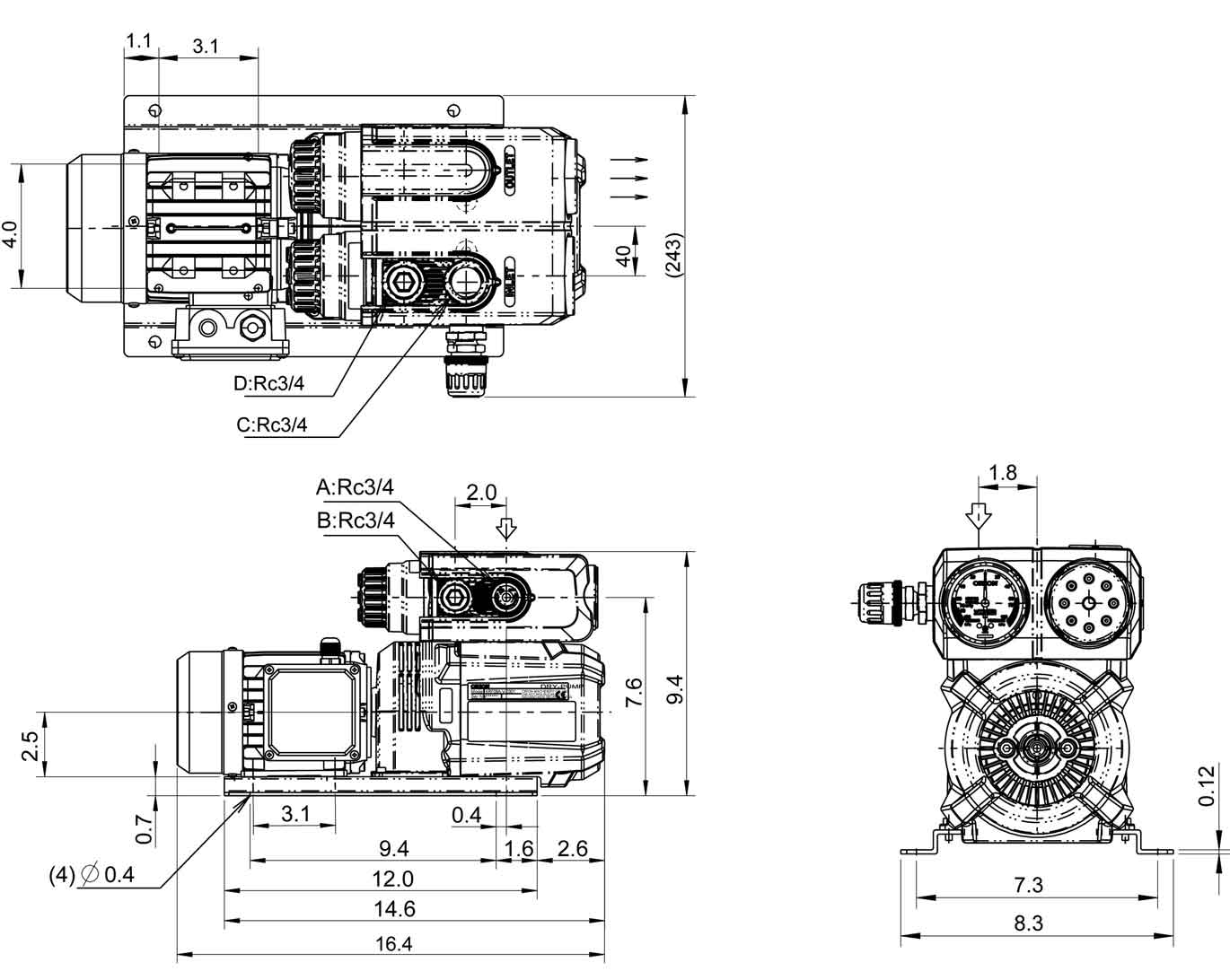

Dimensions (Inches)

krx08-drawing

Performance Curves: 60Hz Vacuum

krx08-pc-curve-vacuum

Performance Curves: 60Hz Pressure

krx08-pc-curve-pressure
