Model Features

3BA7410

  • Cooler running, outboard bearing provides maintenance-free operation
  • Environmentally friendly oil-free technology
  • Extremely quiet operation
  • All motors are standard TEFC with Class F insulation, UL recognized, CE Compliant
  • Explosion-Proof motors available
  • Custom construction blowers are available
  • Rugged die cast aluminum construction

Selection & Ordering Data - Type 3BA7410

Curve
No.
Order
No.
Hz HP
Input
Voltage (V)
Input
Current (A)
Permissible total differential pressure2
Sound pressure level3
Weight (lbs.)
Vacuum inch H2O
Compressor
inch H2O
dB(A)
3~ 50/60 Hz IP55 insulation material class F
B 200 3BA7410-0AT16 50 1.47 200D… 240D 345Y…415Y 5.4D 3.1Y -120 153 58 51
B 201 3BA7410-0AT16 60 2.01 220D… 250D 415Y…460Y 5.5D 3.2Y -136 149 62 51
1~ 50/60 Hz IP55 with attached capacitor for continuous operation
B 200s 3BA7410-0AS45 50 1.47 115 230 16 8 -120 153 58 51
B 201s 3BA7410-0AS45 60 1.74 115 230 20 10 -136 157 62 51

Dimensions

3ba7410-dimensions

Relief valve:
VC51Z (Vacuum)
PC51Z (Pressure)

Filter:
ATF-125-1337
(Vacuum)

AFS-20-125-10
(Pressure)

Performance Curve for Vacuum Pump

Performance Curve for Vacuum Pump

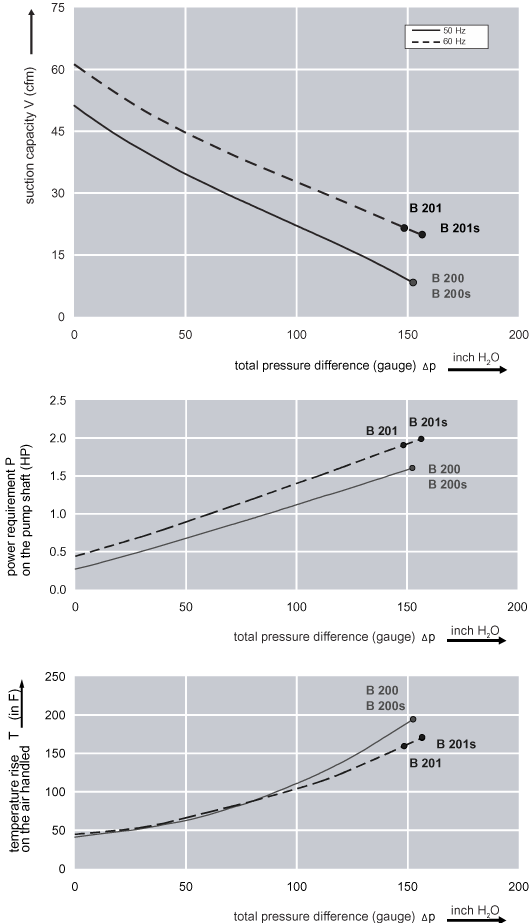

Performance Curve for Compressor

Performance Curve for Compressor
